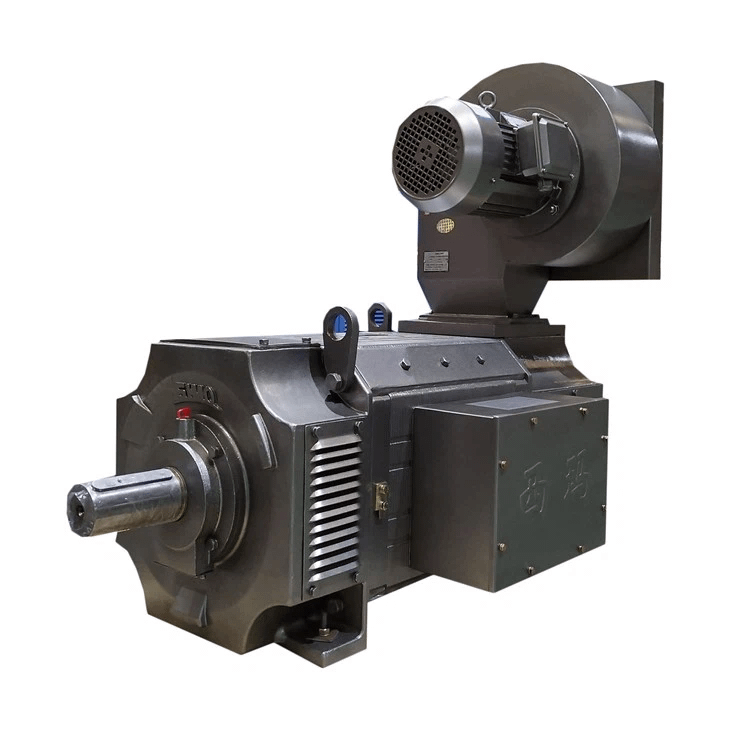

1000 KW DC Motor

Description

Brief Introduction

The 1000 kW DC motor is a high-power solution engineered to meet the demanding performance requirements of heavy-duty industrial applications. Designed with advanced electromagnetic technology and premium-grade materials, this motor delivers stable, long-lasting performance across a wide range of operating conditions. It is ideal for sectors such as mining, metallurgy, chemicals, and other heavy industries where powerful and reliable drive systems are essential.

Engineered for maximum energy conversion efficiency, the motor minimizes energy loss while maintaining low operating temperatures, thereby extending service life. With its 1000 kW rated power, it effortlessly powers large-scale mechanical equipment and supports robust power transmission tasks.

One of the key advantages of the 1000 kW DC motor is its excellent speed regulation capability. Operators can adjust motor speed with precision to suit specific operational demands, ensuring optimal performance and improved productivity under varying load conditions. Its rugged design and use of high-quality materials make it exceptionally resilient in harsh environments—including high temperatures, humidity, and dusty conditions—while maintaining consistent performance.

The motor is designed with ease of maintenance in mind. Its streamlined construction allows for simple disassembly and servicing, helping to extend service life and reduce long-term operational costs.

This series adopts a polygonal structure for enhanced space efficiency. The laminated stator yoke is optimized for rectifier power supplies and is capable of handling pulsating currents and rapid load fluctuations. Precisely mounted magnetic poles ensure smooth commutation and reliable operation.

With an F-class insulation system, the motor utilizes a robust insulation structure and vacuum pressure impregnation (VPI) process to ensure excellent thermal dissipation and long-term insulation stability.

Key features include compact size, high power density, superior performance, light weight, and high reliability—placing this motor on par with internationally advanced products in its class.

The motor is compatible with three-phase fully controlled bridge rectifier power supplies and can operate long-term without external smoothing reactors. For motors rated at 160V and supplied by single-phase bridge rectifiers, a reactor must be connected to the armature circuit to suppress pulsating current.

Outline Dimensions

Motor Parameters
